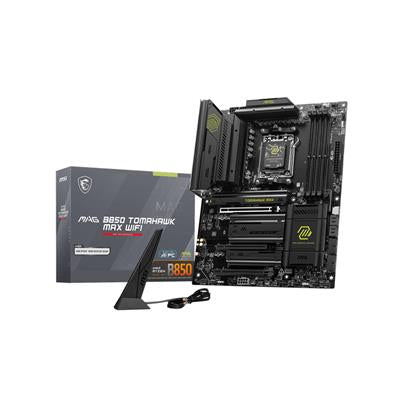

MSI AM5 MAG B850 TOMAHAWK MAX WIFI

Product Name: MSI MAG B850 TOMAHAWK MAX WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Model Number: MAG B850 TOMAHAWK MAX WIFI

Warranty: 3 Years

Chipset: AMD B850

CPU Interface: Socket AM5

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8400+ (O.C.)

Max. Memory Support: 256GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x2

LAN Speed: Realtek 8126VB 5G LAN

Wireless NIC: Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth: v5.4

On-Board Audio:

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 5Gbps Port(s) Type-A: 1

Back USB 10Gbps Port(s) Type-A: 2

Back USB 10Gbps Port(s) Type-C: 3

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 2

Back S/PDIF Output Port(s): 1

Back Other Port(s): Wi-Fi / Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

24-pin ATX Power: 1

8-pin ATX Power: 2

PCIe Power Connector(s): 1 x 8-pin

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 4

USB 20Gbps Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s):

• 1 x EZ Conn-header
• 3 x Addressable V2 RGB LED Connector
• 1 x RGB LED Connector

Form Factor: Standard ATX

Product Width: 243.84mm

Product Length: 304.8mm

Package Width: 27cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 2.06Kg

Special Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC).
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna.
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C.
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• 1 x SATA Cable
• EZ M.2 Clips II
• EZ M.2 Clip II Remover
• Cable Sticker
• EZ Wi-Fi Antenna
• 1 to 3 EZ Conn-Cable
• EZ Front Panel Cable
