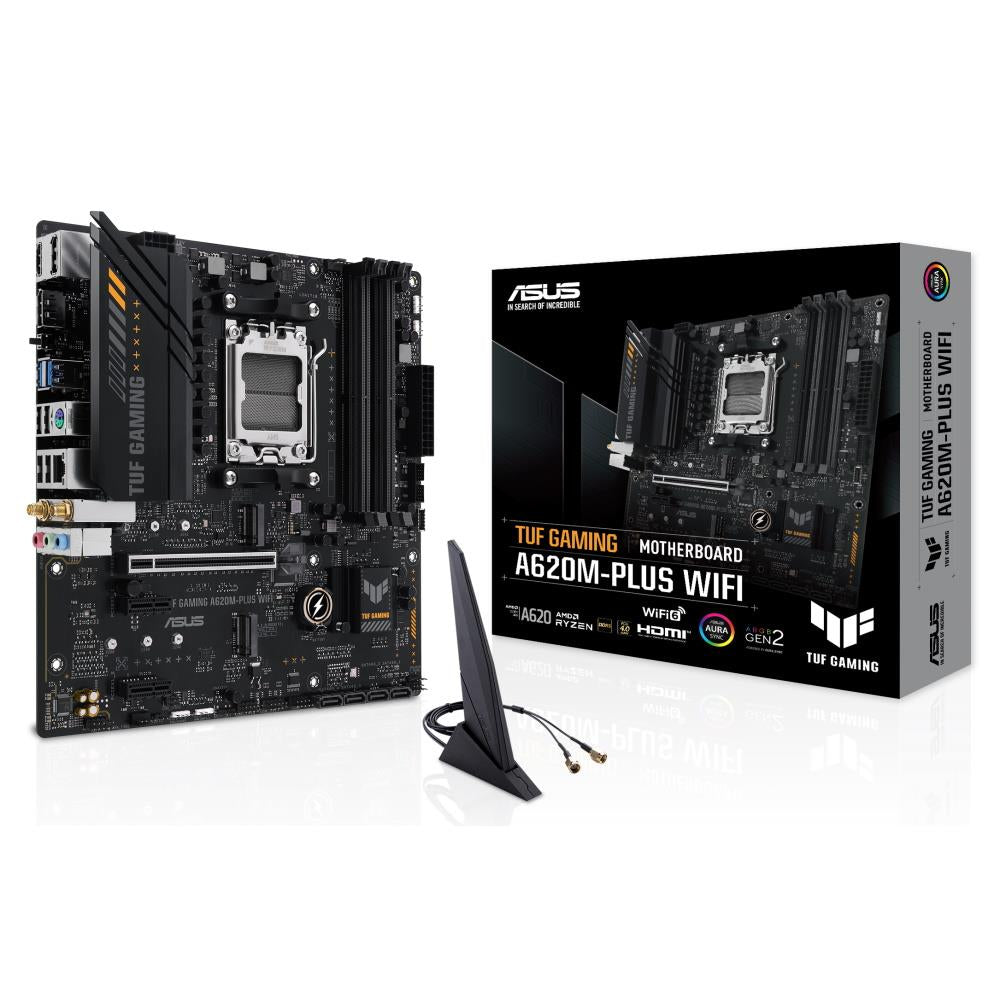

ASUS AM5 TUF GAMING A620M-PLUS WIFI

Product Name: ASUS TUF GAMING A620M-PLUS WIFI (Socket AM5/A620/DDR5/S-ATA 6Gb/s/Micro ATX)

Warranty: 3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset: AMD A620

CPU Interface: Socket AM5

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 6400+ (O.C.)

Max. Memory Support: 128GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 2 x PCIe Gen 4.0 x4

On-Board LAN:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless NIC: Wi-Fi 6

Wireless Technology:

• 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band

Bluetooth: v5.3

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back HDMI Port(s): 1

Back DisplayPort(s): 2

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 2

COM Port Header(s): 1

Front Panel Audio Connector: 1

S/PDIF Out Header(s): 1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27.5cm

Package Length: 27.7cm

Package Height: 7cm

Gross Weight: 1.41Kg

Special Features:

ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x ASUS Wi-Fi Moving Antennas
• 1 x I/O Shield
• 1 x TUF Gaming Sticker
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification Card
• 1 x User Guide
