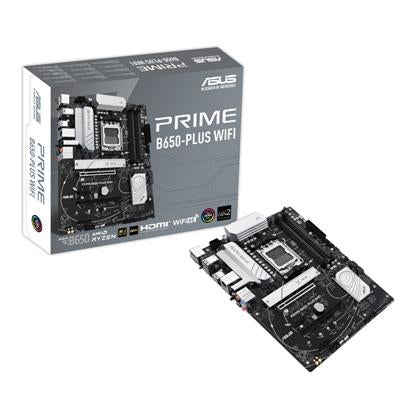

ASUS AM5 PRIME B650-PLUS WIFI

Product Name: ASUS PRIME B650-PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Model Number: PRIME B650-PLUS WIFI

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B650

CPU Interface: Socket AM5

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 7600+ (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 2

PCI Express 4.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed: 1 x Realtek 2.5Gb Ethernet

Wireless NIC: Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth: v5.3

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back Panel I/O Ports: 1

Back USB 2.0 Port(s): 2

Back USB 5Gbps Port(s) Type-A: 2

Back USB 10Gbps Port(s) Type-A: 3

Back USB 10Gbps Port(s) Type-C: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): 1 x Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 5Gbps Header(s): 2

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 34.5cm

Package Height: 7cm

Gross Weight: 1.67Kg

Special Features:

• AMD AM5 Socket: Ready for AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C, front USB 5Gbps Type-C, Thunderbolt 4 header support.
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x Wi-Fi moving antenna
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x User guide
