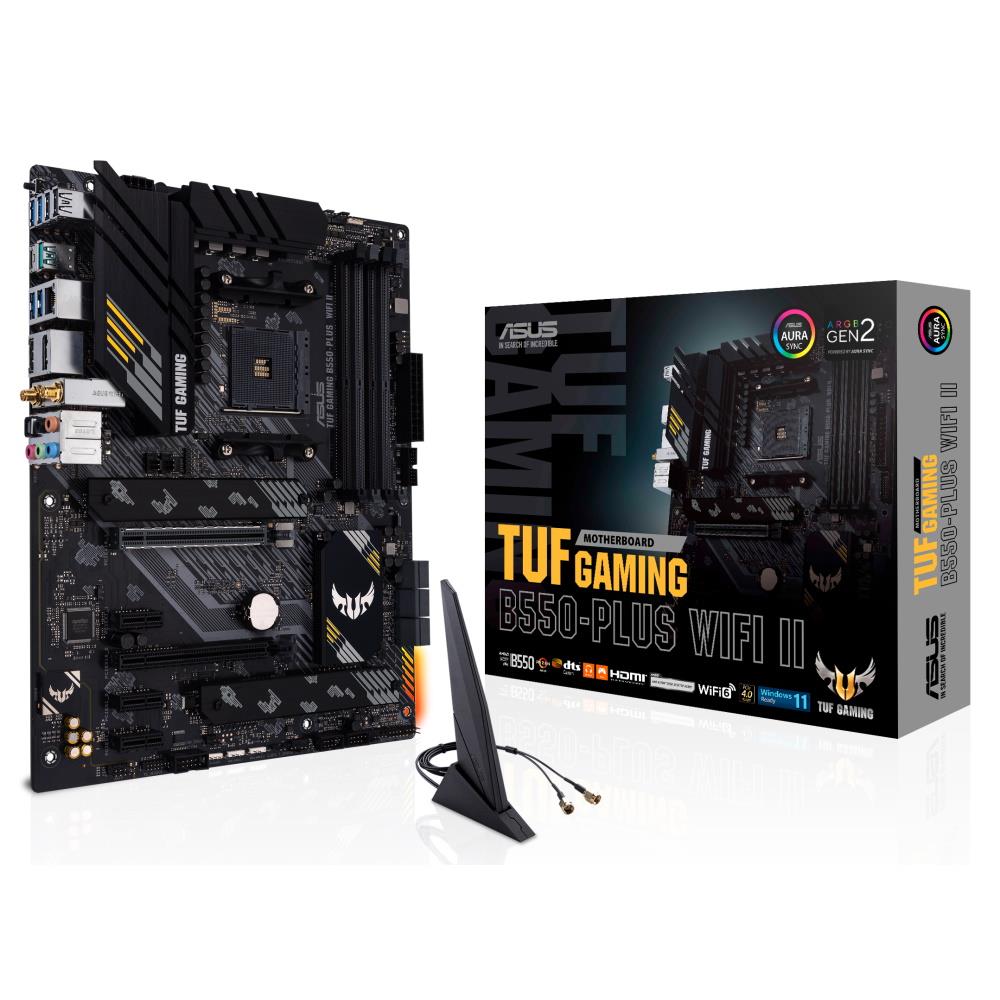

ASUS AM4 TUF GAMING B550-PLUS WIFI II

Product Name: ASUS TUF GAMING B550-PLUS WIFI II (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Model Number: TUF GAMING B550-PLUS WIFI II

Warranty: 3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4866 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s):

• 1 x SATA/PCIe 4.0 x4
• 1 x SATA/PCIe 3.0 x4

On-Board LAN: 1 x Realtek 2.5Gb Ethernet

Wireless NIC:

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Wireless Technology: Supports 2.4/5GHz frequency band

Bluetooth: v5.2

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): 1 x ASUS Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s):

• 2 x AURA Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Thermal Sensor header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 1.61Kg

Special Features:

• AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.
• Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability.
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility.
• Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support.
• Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard.
• AI noise-cancelling microphone provides crystal-clear in-game voice communication.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• IO Shield
• 1 x M.2 ANCHOR
• Support Disk
• Manual
