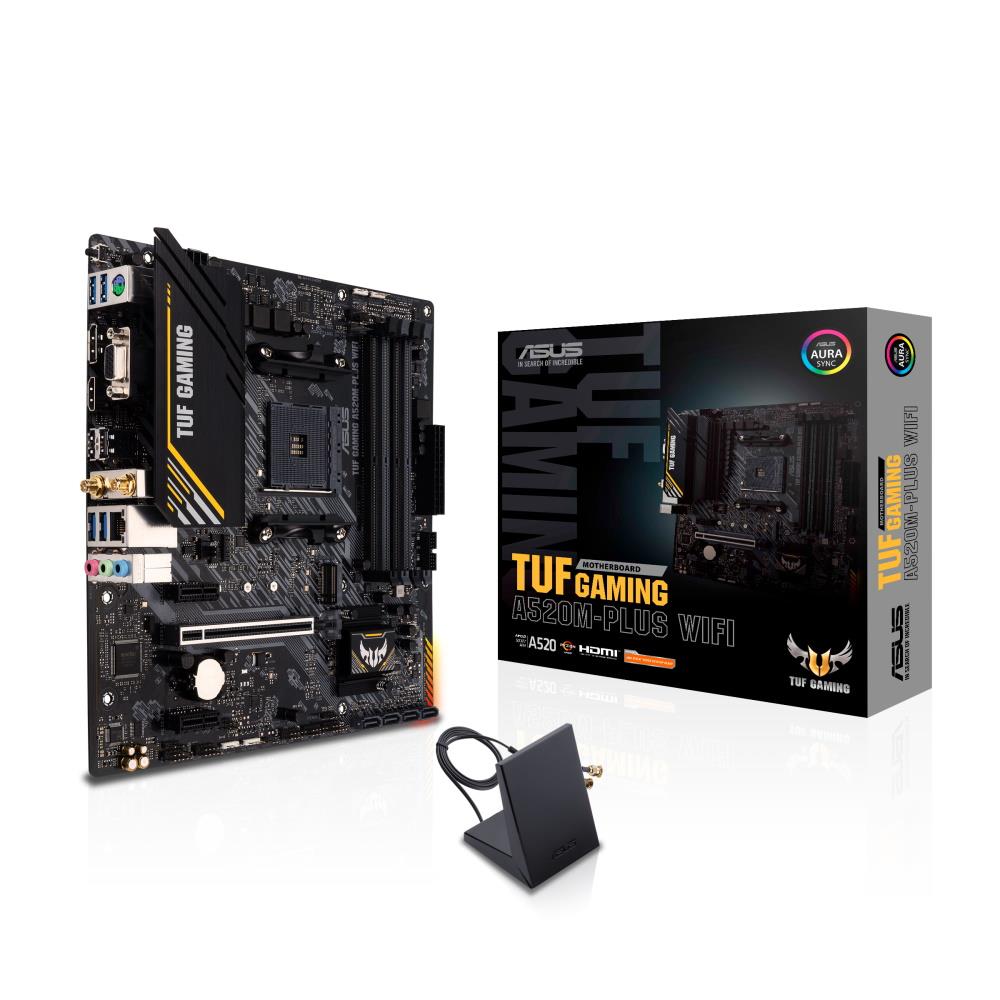

ASUS AM4 TUF GAMING A520M-PLUS WIFI

Product Name: ASUS TUF GAMING A520M-PLUS WIFI (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Model Number: TUF GAMING A520M-PLUS WIFI

Warranty:3 Years

BIOS:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Chipset: A520

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4866 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

On-Board LAN: 1 x Realtek 1Gb Ethernet

Wireless NIC: Realtek Wi-Fi 8821CE

Wireless Technology:

• 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
• Supports dual frequency band 2.4/5GHz
• Supports channel bandwidth: HT20/HT40/HT80

Bluetooth: v5.0

On-Board Audio: Realtek ALC 887/897 7.1 Surround Sound High-Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x ASUS

Wi-Fi Module Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s):

• 2 x AURA Addressable Gen 2 header
• 2 x AURA RGB headers

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27.5cm

Package Length: 28cm

Package Height: 7cm

Gross Weight: 1.30Kg

Special Features:

• AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.
• Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+.
• Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology.
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• IO Shield
• 1 x M.2 SSD screw package
• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF Gaming sticker
• Support Disk
• 1 x TUF Certification card
• Manual
