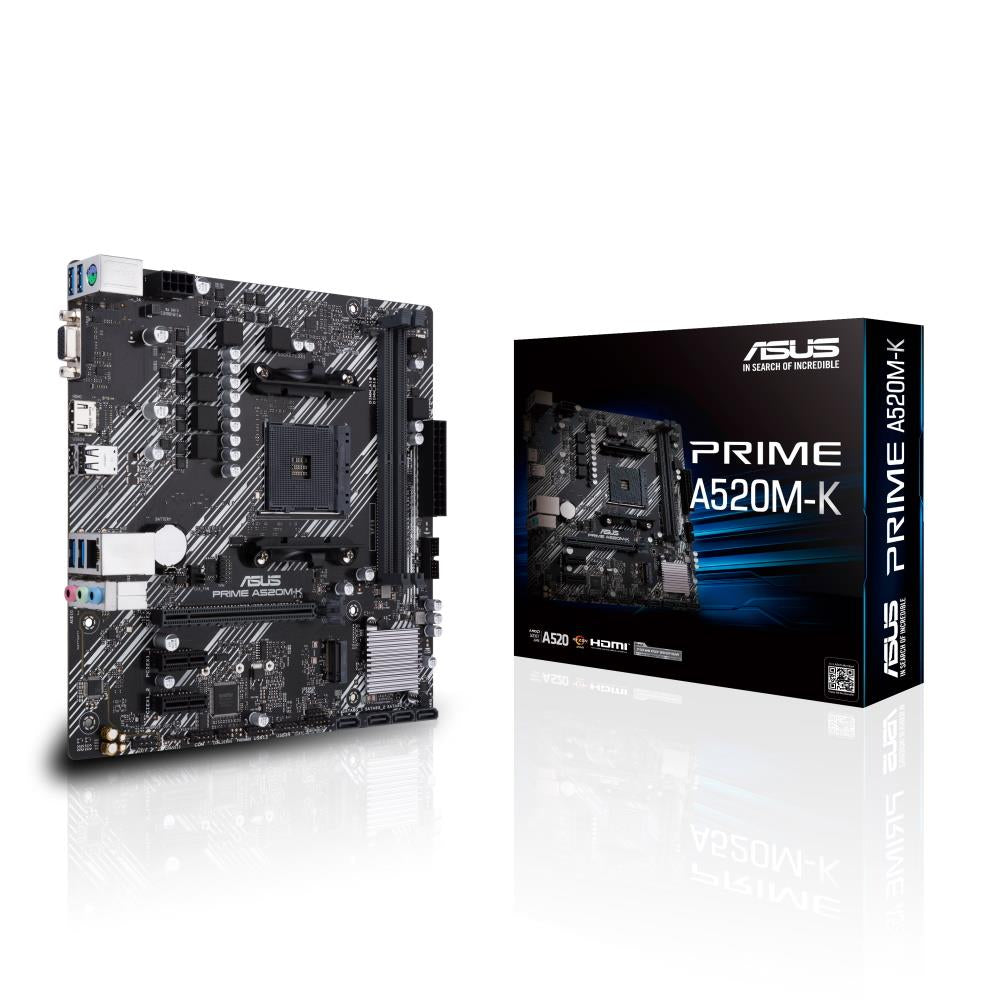

ASUS AM4 PRIME A520M-K

Product Name: ASUS PRIME A520M-K (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD A520

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 4600 (O.C.)

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1

On-Board LAN: 1 x Realtek RTL8111H 1Gb Ethernet

On-Board Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Form Factor: Micro ATX

Product Width: 221mm

Product Length: 226mm

Package Width: 26cm

Package Length: 27cm

Package Height: 5cm

Gross Weight: 0.89Kg

Special Features:

• ASUS DIGI+ VRM
• ASUS LANGuard
• ASUS Overvoltage Protection
• ASUS SafeSlot Core
• ASUS Stainless-Steel Back I/O

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• IO Shield
• 1 x M.2 SSD Screw Package
• Support Disk
• Manual
