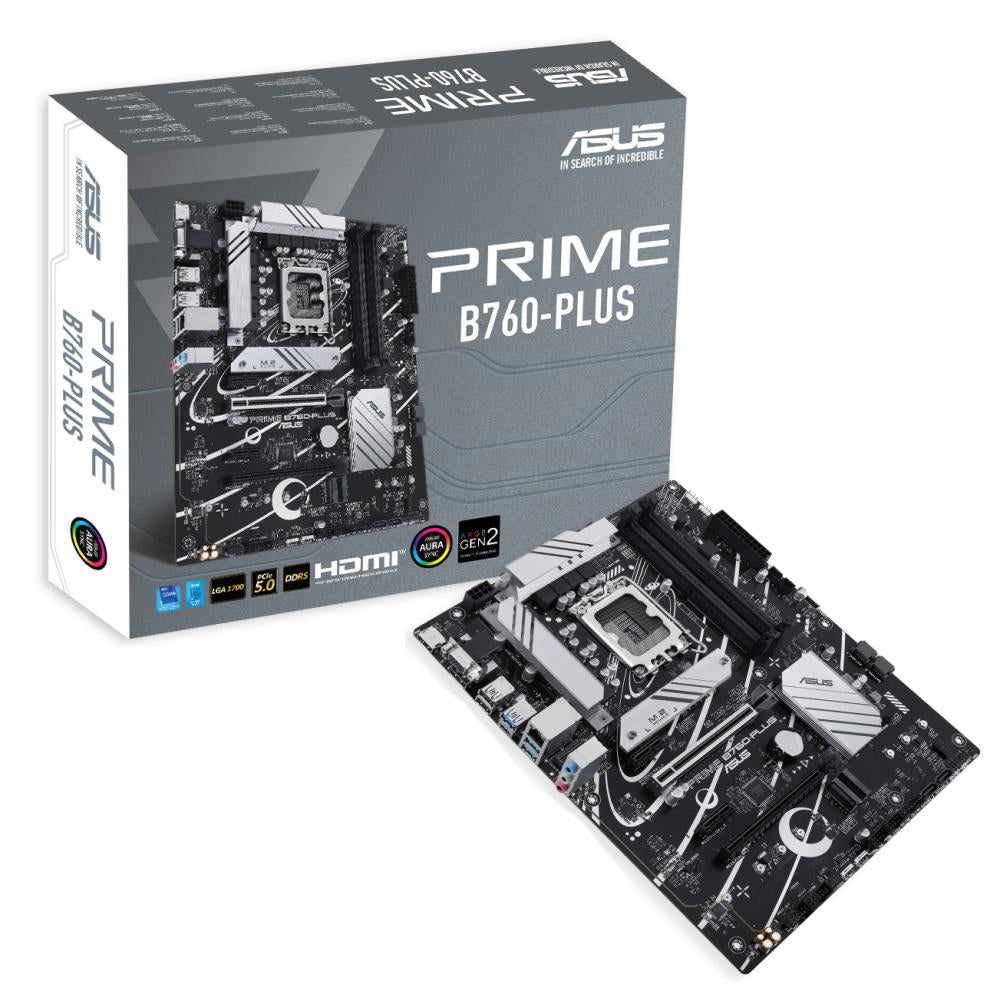

ASUS 1700 PRIME B760-PLUS

Product Name: ASUS PRIME B760-PLUS (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)

Model Number: PRIME B760-PLUS

Warranty: 3 Years

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Chipset: Intel B760

CPU Interface: Socket 1700

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 7200+ (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

M.2 Socket(s): 3 x PCIe Gen 4.0 x4

On-Board LAN: 1 x Realtek 2.5Gb Ethernet

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 1

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back USB 3.2 Port(s) Type-C Gen 2x2: 1

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x Vertical M.2 slot (Key E)

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 2

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 26.5cm

Package Length: 33cm

Package Height: 5.2cm

Gross Weight: 1.21Kg

Special Features:

• Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors.
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support.
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 2 x Screw Packages for M.2 SSD
• 1 x User guide
